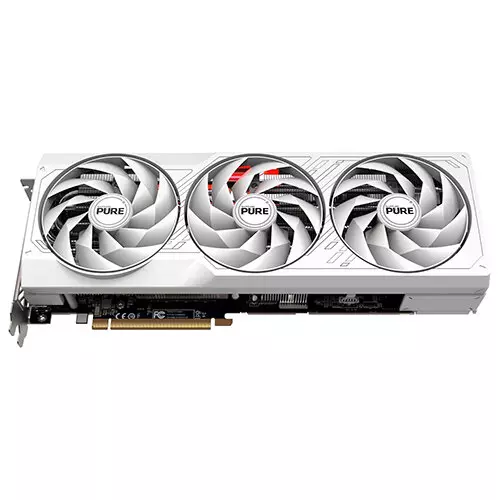

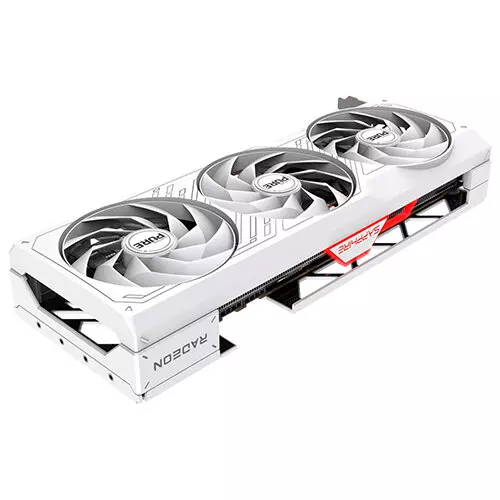

Description
Digital Power Design
SAPPHIRE PURE AMD Radeon™ RX 7000 Series are designed with digital power which provides accurate power control and excellent power efficiency
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

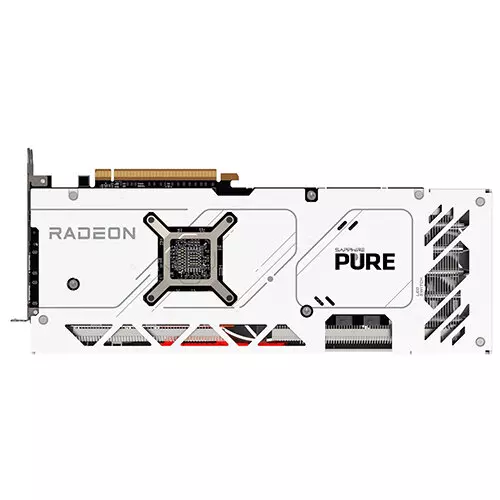

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

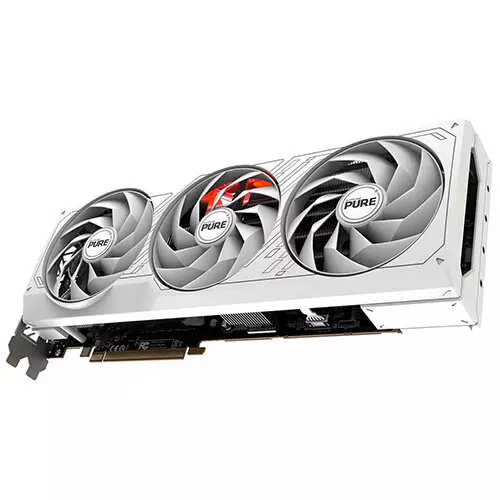

Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Specifications
|
| SKU |
S88-8E475-101SA |
| Specifications |
| GPU |
AMD Radeon™ RX 7800 XT |
| Architecture |
AMD RDNA™ 3 Architecture |
| Process Size |
5nm |
| Engine Clock |
Boost Clock: Up to 2475 MHz<br>Game Clock: Up to 2169 MHz |
| Stream Processors |
3840 |
| Compute Units |
60 CU (with RT+AI Accelerators) |
| Infinity Cache |
64MB |
| Ray Accelerators |
60 |
| Memory Size/Bus |
16GB/256 bit GDDR6 |
| Memory Clock |
19.5 Gbps Effective |
| Displays |
Maximum 4 Displays |
| Resolution |
HDMI™: 7680×4320<br>DisplayPort 2.1: 7680×4320 |
| Interface |
PCI-Express 4.0 x16 |
| Output |
2x HDMI<br>2x DisplayPort |
| BIOS Support |
UEFI |
| Game Index |
4K |
| Sapphire Features |
Premium Digital Power Design<br>Ultra High Performance Conductive Polymer Aluminum Capacitors<br>Fuse Protection<br>Tri-X Cooling Technology<br>High TG Copper PCB<br>Optimized Composite Heatpipe<br>Intelligent Fan Control<br>Precision Fan Control<br>Metal Backplate<br>Red LED SAPPHIRE Logo<br>Two-Ball Bearing Fans<br>Angular Velocity Fan Blade<br>TriXX Supported<br>TriXX Boost |
| Accessories Bundled |
Graphics Card Supporter |
| AMD Features |
AMD RDNA™ 3 Architecture<br>60 AMD RDNA™ 3 Compute Units<br>64MB AMD Infinity Cache™ Technology<br>DisplayPort™ 2.1 Support<br>AMD Radiance Display™ Engine<br>16GB GDDR6 on 256-Bit Memory Bus<br>PCI® Express 4.0 ready<br>AMD FidelityFX™ Super Resolution technology<br>Microsoft® DirectX® 12 Ultimate Support<br>Microsoft® DirectStorage Support<br>Vulkan® Optimized<br>AMD Smart Technologies<br>AMD Software: Adrenalin Edition™<br>AMD Noise Suppression<br>AMD Privacy View<br>AMD Radeon™ Super Resolution technology<br>AMD Link<br>AMD FreeSync™ Technology |
| Cooling |
3 Fans |
| Form Factor |
2.5 slot, ATX<br>Dimension: 320(L) x 128.75(W) x 52.57(H) mm |
| Power Consumption |
270W Total Board Power |
| Operating System Support |
Linux®, Windows® 10, and Windows 11 (64-bit) |
| System Requirements |
Minimum 700 Watt Power Supply<br>2 x 8-pin Power Connector<br>PCI Express® based PC with one X16 lane graphics slot available on the motherboard<br>Minimum 8GB of system memory (16GB recommended) |
|
| Brand |
SAPPHIRE |
| Weight |
4.000000 |
| Form Factor |
ATX |
| Chipset manufacturer |
AMD |
