Description
Digital Power Design
SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency
Ultra High Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7700 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

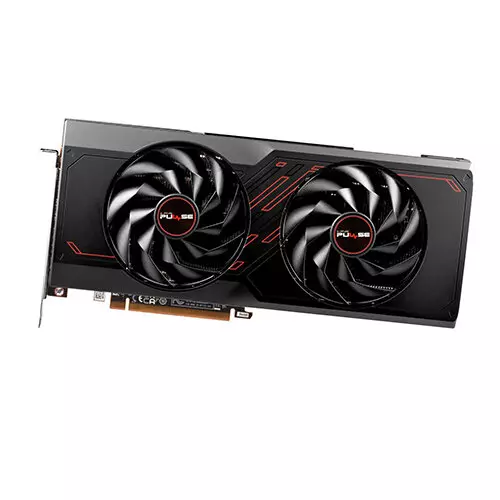

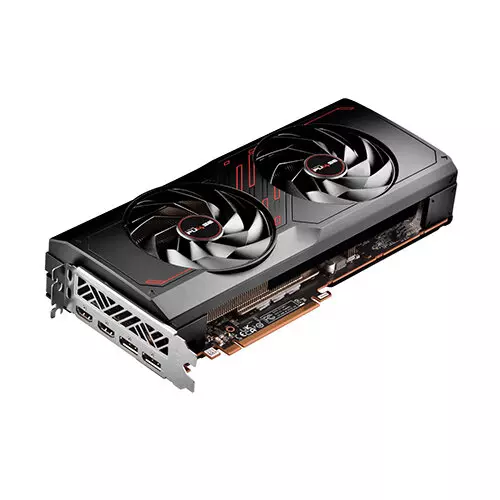

Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Specifications
|
| SKU |
S88-6E475-101SA |
| Specifications |
| GPU |
AMD Radeon™ RX 7700 XT Graphics Card |
| 5nm GPU |
Yes |
| AMD RDNA™ 3 Architecture |
Yes |
| Engine Clock |
Boost Clock: Up to 2544 MHz
Game Clock: Up to 2171 MHz |
| Stream Processors |
3456 |
| Compute Units |
54 CU (with RT+AI Accelerators) |
| Infinity Cache |
48MB |
| Ray Accelerators |
54 |
| Memory Size/Bus |
12GB/192 bit GDDR6 |
| Memory Clock |
18 Gbps Effective |
| Displays |
Maximum 4 Displays |
| Resolution |
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320 |
| Interface |
PCI-Express 4.0 x16 |

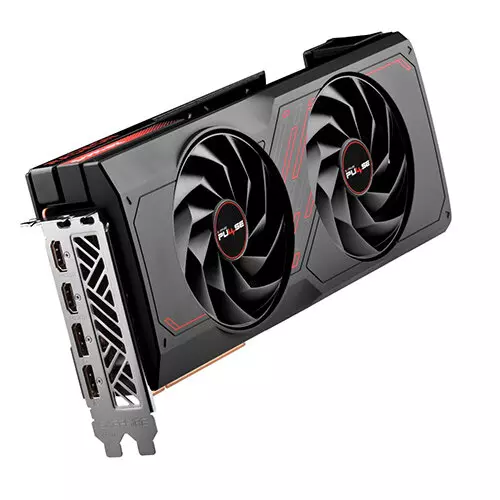

| Output |
2x HDMI
2x DisplayPort |
| BIOS Support |
UEFI |
| Game Index |
1440P |
| Sapphire Features |
Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
High TG Copper PCB
Optimized Composite Heatpipe
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control

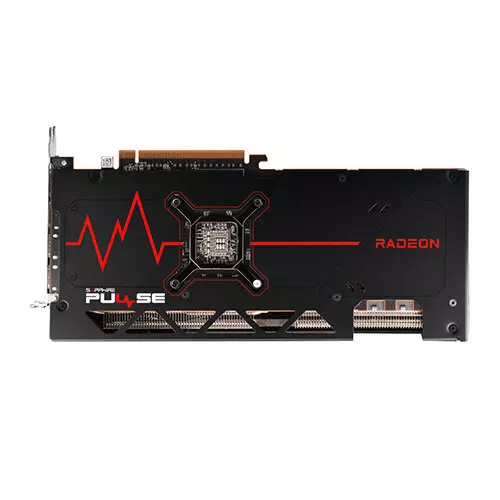

Metal Backplate
Angular Velocity Fan Blade
Dual-Ball Bearing Fans
TriXX Supported
TriXX Boost |
| AMD Features |
AMD RDNA™ 3 Architecture
54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
48MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1 Support
AMD Radiance Display™ Engine
12GB GDDR6 on 192-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ technology |
| Cooler Type |
2 Fans |
| Form Factor |
2.5 slot, ATX |
| Dimension |
280(L)X 128.75(W)X 52.57 (H)mm |
| Power Consumption |
230W Total Board Power |
| OS |
Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement |
Minimum 700 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended. |
|
| Brand |
SAPPHIRE |
| Weight |
4.000000 |
| Form Factor |
ATX |
| Chipset manufacturer |
AMD |
| Memory Size |
12 GB |
| GPU |
RX 7700 XT |
