Description
WAVE Fin Design & V-Shape Fin Design for GPU cooling
The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.
Cold Rolled Steel Frame

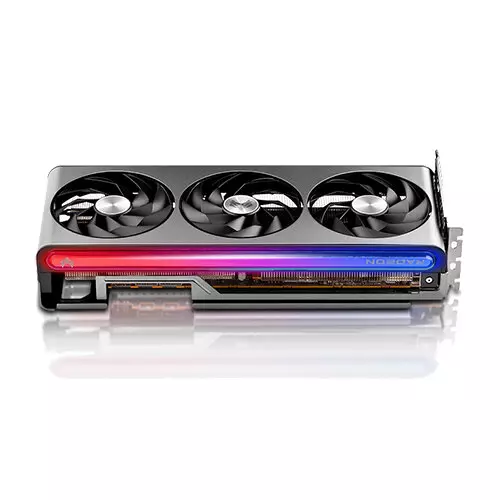

Experience a superior and beautifully crafted frame on the NITRO+ AMD Radeon™ RX 7700 XT Graphics Card with a Cold Rolled Steel Frame that fortifies the shroud structure and durability while encasing the sides of the PCB for a strong encasement alongside the All Metal Backplate.
Digital Power Design
SAPPHIRE NITRO+ AMD Radeon™ RX 7000 Series are designed with digital power which provides accurate power control and excellent power efficiency
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Tough Metal Backplate

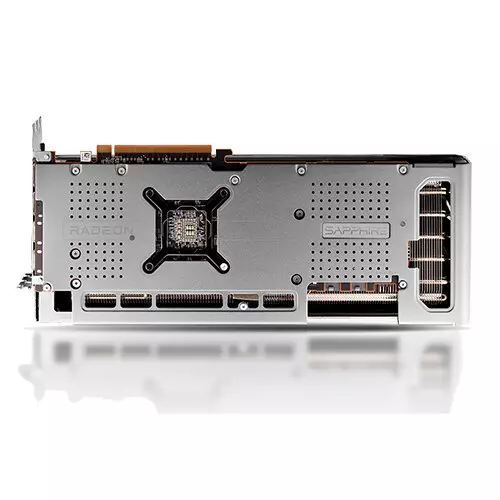

The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Dedicated VRM Cooling
Dedicated VRM cooling module to create optimal heat dissipation for peak airflow and cooling performance.
Angular Velocity Fan Blade

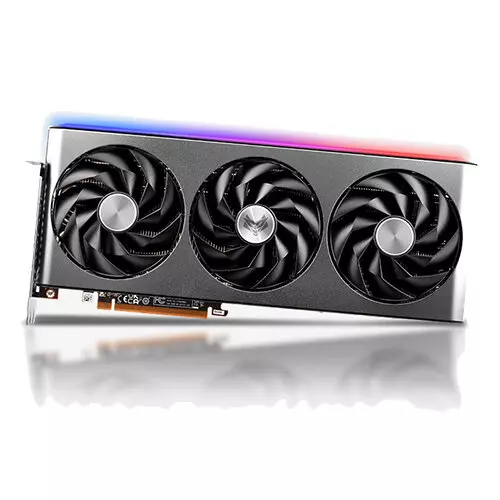

The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Ultra High Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7700 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
Specifications
|
| SKU |
S88-5E475-101SA |
| Specifications |
| GPU |
AMD Radeon™ RX 7700 XT Graphics Card |
| 5nm GPU |
Yes |
| AMD RDNA™ 3 Architecture |
Yes |
| Engine Clock |
Boost Clock: Up to 2599 MHz
Game Clock: Up to 2276 MHz |
| Stream Processors |
3456 |
| Compute Units |
54 CU (with RT+AI Accelerators) |
| Infinity Cache |
48MB |
| Ray Accelerators |
54 |
| Memory Size/Bus |
12GB/192 bit GDDR6 |
| Memory Clock |
18 Gbps Effective |
| Displays |
Maximum 4 Displays |
| Resolution |
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320 |
| Interface |
PCI-Express 4.0 x16 |
| Output |
2x HDMI
2x DisplayPort |
| BIOS Support |
Dual UEFI |
| Game Index |
1440P |
| Sapphire Features |
Dual BIOS
TriXX Software Switch
Premium Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipe
Intelligent Fan Control
Precision Fan Control
Metal Backplate with ARGB
ARGB Light Bar
Two-Ball Bearing Fans
Angular Velocity Fan Blade
Assistive System Fan Control
Cold Rolled Steel Frame
Dedicated VRM Cooling
Wave Fin Design
V Shape Fin Design for GPU Cooling
TriXX Supported
Fan Check
Fan Quick Connect
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization
Accessories Bundled
Graphics Card Supporter
ARGB Extension Cable |
| AMD Features |
AMD RDNA™ 3 Architecture
54 AMD RDNA™ 3 Compute Units
48MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1 Support
AMD Radiance Display™ Engine
12GB GDDR6 on 192-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology*
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ Technology |
| Cooler Type |
3 Fans |
| Form Factor |
3 slot, ATX |
| Dimension |
320(L)X 134.85(W)X 61.57 (H)mm |
| Power Consumption |
252W Total Board Power |
| OS |
Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement |
Minimum 700 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended. |
|
| Brand |
SAPPHIRE |
| Weight |
4.000000 |
| Form Factor |
ATX |
| Chipset manufacturer |
AMD |
| Memory Size |
12 GB |
| GPU |
RX 7700 XT |
