Description

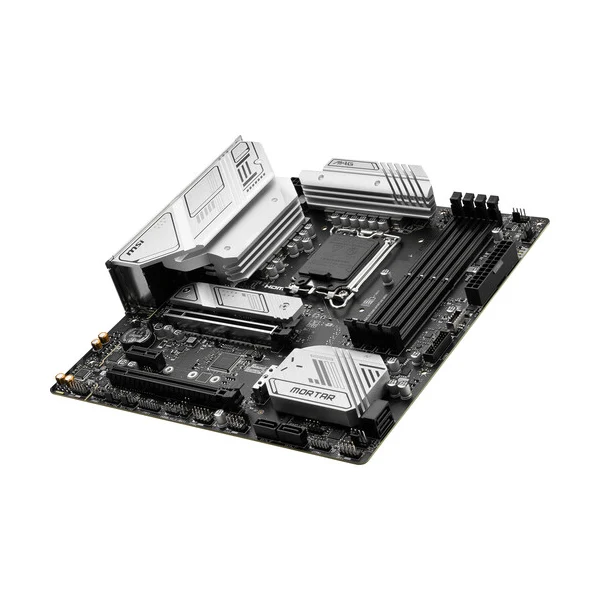

Set the foundation of your next PC build with the robust MSI MAG B760M MORTAR WIFI LGA 1700 Micro-ATX Motherboard. Designed to leverage the power of 12th and 13th Gen Intel CPUs, DDR5 RAM, and a high-speed expansion slot for graphics, the MAG offers a solid foundation designed for gaming enthusiasts.
Intel’s LGA 1700 socket rests at the heart of the MAG, allowing you to install a variety of 12th and 13th Gen processors to match your needs. The Micro-ATX form factor makes it easier to install in smaller cases, reducing your desktop footprint without compromising performance. Four DDR5 RAM slots allow you to install up to 128GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Between back-panel connections and internal headers, you get several USB 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports, designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. A single USB-C 3.2 Gen 2×2 port offers enhanced data transfer speeds and Power Delivery, allowing you to support power-hungry devices with ease. You also get Bluetooth 5.3 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 6E (802.11ax) options, respectively.
Enhanced Design
CPU
Chipset | Intel B760 |
CPU Socket | LGA 1700 |
Back Panel I/O
USB | 3 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 2.0) 1 x USB-C (USB 3.2 Gen 2×2) |
Thunderbolt | None |
Display | 1 x DisplayPort 1.4 1 x HDMI 2.1 |
Audio | 5 x 1/8″ / 3.5 mm 1 x S/PDIF |
Ethernet / Controller | 1 x 2.5Gigabit |
Wi-Fi Antenna | 2 x Connector |
Memory
Memory Slots | 4 x 288-Pin |
Memory Support | DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
ECC Support | Non-ECC Unbuffered |
Storage Expansion
SATA | 4 x SATA III |
M.2 | 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) |
RAID Support | RAID 0, 1, 5, 10 (SATA) |
Internal I/O
Expansion Slots | 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
USB | 1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) |
Air Cooling | 1 x 4-Pin CPU 4 x 4-Pin System |
Liquid Cooling | 1 x 4-Pin Pump |
Power Connectors | 1 x 24-Pin Mainboard 2 x 8-Pin CPU |
Security | Chassis Intrusion |
LED Header | 3 x RGB |
Add-On | 1 x Thunderbolt Header |
Front Panel I/O
Front Panel I/O | AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2 |
Audio
Audio Codec | Realtek ALC897 (7.1-Channel) |
Wireless
Bluetooth | 5.3 |
Wi-Fi | Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support |
Software
OS Compatibility | Windows 10 to 11 *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Physical
Form Factor | Micro-ATX |
Dimensions | 9.6 x 9.6″ / 24.4 x 24.4 cm |
Packaging Info
Package Weight | 3.325 lb |
Box Dimensions (LxWxH) | 11.3 x 11.2 x 2.8″ |
