Description

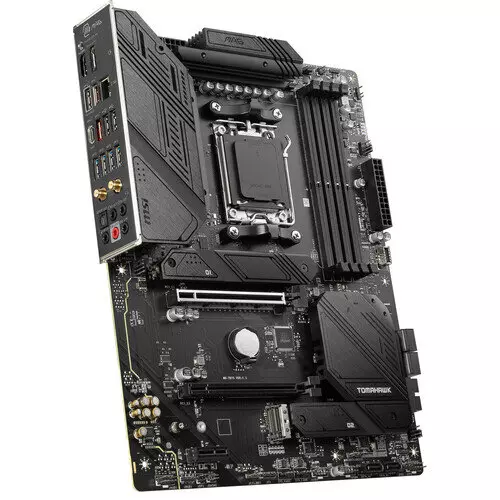

The MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard. Offering robust connectivity for gaming-focused components and unique customization options, the MAG B650 TOMAHAWK WIFI is ideal for both new and seasoned builders alike.
With an AM5 socket, you can support a wide range of AMD Ryzen 7000 Series processors. Four dual-channel DDR5 RAM slots allow you to install up to 128GB of memory so you can scale your multitasking performance to your liking. Six SATA and three M.2 interfaces allow you to create an array of storage drives for your games, media, and other important applications. Easily install various graphics and utility cards with PCIe 4.0 x16, PCIe 4.0 x16 (x4 mode), and PCIe 3.0 x1 expansion slots. The back panel provides you with ample connectivity options, giving you four USB-A 3.2 Gen 1 and three USB-A 3.2 Gen 2 ports, giving you data transfer speeds up to 5 and 10 Gb/s, respectively, suitable for a wide range of peripherals such as external storage drives, microphones, and more. Connect your keyboard and mouse with two USB-A 2.0 ports. A single USB-C 3.2 Gen 2×2 port offers up to 20 Gb/s speeds, suitable for audio arrays. Bluetooth 5.2 technology provides support for wireless devices such as headphones and controllers. When combined with Ryzen processors with integrated graphics, the DisplayPort and HDMI video outputs can provide you with enhanced visual capabilities suitable for light workloads and troubleshooting. Connect to your network via Wi-Fi 6E (802.11ax) technology or use the integrated 2.5 Gigabit Ethernet port for a reliable wired connection. You also get dual BIOS, allowing you to swap back and forth between two different setups with ease.
Specifications
|
| SKU |
911-7D75-001 |
| Specifications |
| CHIPSET |
AMD B650 |
| CPU |
Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5 |
| MEMORY |
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO |
| ONBOARD GRAPHICS |
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT |
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| MULTI-GPU |
AMD MULTI-GPU Support |
| STORAGE |
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G |
| RAID |
Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN |
Realtek® 8125BG 2.5G LAN |
| WIRELESS LAN & BLUETOOTH |
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
| INTERNAL IO |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports |
| LED FEATURE |
4x EZ Debug LED |
| BACK PANEL PORTS |
1. DisplayPort
2. 2.5G LAN
3. USB 3.2 Gen 2 10Gbps (Type-A)
4. USB 3.2 Gen 1 5Gbps (Type-A)
5. Wi-Fi / Bluetooth
6. Audio connectors
7. Flash BIOS Button
8. HDMI™
9. USB 3.2 Gen 2 10Gbps (Type-A)
10. USB 3.2 Gen 2×2 20Gbps (Type-C) |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO |
ATX
243.84mmx304.8mm |
|
| Brand |
MSI |
| Weight |
2.000000 |
| Chipset Brand |
AMD B650 |
| Socket |
AMD AM5 |
| Form Factor |
ATX |
