Description

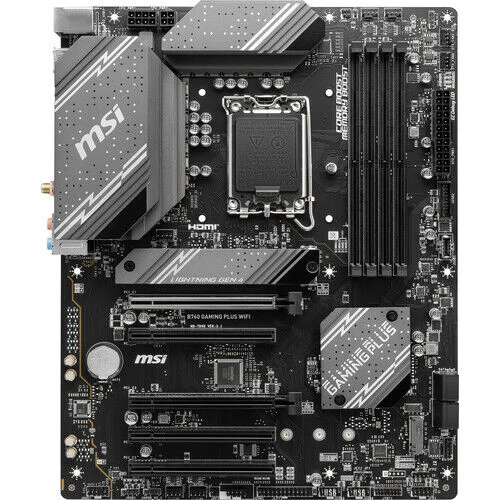

Set the foundation of your next PC build with the robust MSI B760 Gaming Plus WiFi DDR5 Intel ATX Motherboard | 911-7D98-012 Designed to leverage the power of 12th and 13th Gen Intel CPUs, the GAMING PLUS sports a layout designed to give gaming enthusiasts essential connectivity options ideal for starter builds.
Intel’s LGA 1700 socket rests at the heart of the GAMING PLUS, allowing you to install a variety of 12th and 13th Gen processors to match your needs. Four DDR5 RAM slots allow you to install up to 192GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with PCIe 4.0 x16, 4.0 x16 (in x4 mode), and 3.0 x4 expansion slots. Between back-panel connections and internal headers, you get several USB 2.0, 3.2 Gen 1 and Gen 2 ports, designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. You also get Bluetooth 5.3 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with a built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 6E (802.11ax) options, respectively.
Enhanced Design
Providing you with enhanced performance, the GAMING PLUS utilizes several features and electrical designs to optimize your gaming experience with the 12+1+1 Dual Rail Power System. Extended heat sink, pump fan support, M.2 Shield Frozr, and chipset heat sink with 7W/mK thermal pad all work together to ensure your system remains cool under heavy loads.
DIY Friendly
Whether you are a seasoned or a brand new builder, the GAMING PLUS offers several enhancements that are useful to everyone. EZ M.2 Clip makes securing your SSDs quick, easy, and screw-free. Driver Utility Installer keeps your firmware up to date, preventing potential software issues. You also have several other conveniences such as the EZ debug LEDs, Double ESD Protection, and an electrical keep-out zone.
Built for Performance
The GAMING PLUS’ PCIe 4.0 x16 slot is backed by their proprietary Lightning Gen 4 technology, giving you up to 64 GB/s bandwidth, driving up graphical performance. Integrated Xtreme Memory Profile (XMP) overclocks your memory and ensures proper electrical throughput for greater RAM speeds.
Specifications
|
| SKU |
911-7D98-012 |
| Specifications |
| Chipset |
INTEL B760 |
| CPU Support |
Intel® Core™ 14th/ 13th/ 12th Gen, Intel® Pentium® Gold and Celeron® Processors (LGA1700) |
| Memory |
4x DDR5, Maximum Memory Capacity 192GB |
|
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
|
Max. overclocking frequency: |
|
– 1DPC 1R Max speed up to 6800+ MHz |
|
– 1DPC 2R Max speed up to 6400+ MHz |
|
– 2DPC 1R Max speed up to 6000+ MHz |
|
– 2DPC 2R Max speed up to 5600+ MHz |
|
Supports Intel® XMP 3.0 OC |
|
Supports Dual-Controller Dual-Channel mode |
|
Supports non-ECC, un-buffered memory |
| Onboard Graphics |
1x HDMI™ |
|
– Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* (*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.) |
|
1x DisplayPort |
|
– Support DP 1.4, maximum resolution of 4K 60Hz* |
| Slots |
5x PCI-E x16 slot |
|
– PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
|
– PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
– PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
– PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
– PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage |
2x M.2 |
|
– M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices |
|
– M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
4x SATA 6G |
|
– SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
4x USB 2.0 (Rear) |
|
4x USB 2.0 (Front) |
|
2x USB 3.2 Gen1 Type A (Front) |
|
1x USB 3.2 Gen1 Type C (Front) |
|
2x USB 3.2 Gen2 Type A (Rear) |
|
1x USB 3.2 Gen2 Type C (Rear) |
| LAN |
Realtek® RTL8125BG 2.5G LAN |
| Wireless LAN & Bluetooth |
Intel® Wi-Fi 6E |
|
– The Wireless module is pre-installed in the M.2 (Key-E) slot |
|
– Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
|
– Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
– Supports Bluetooth® 5.3, FIPS, FISMA |
| Audio |
Realtek® ALC897 Codec |
|
– 7.1-Channel High Definition Audio |
|
– Supports S/PDIF output |
| Internal I/O |
Various connectors including power, fans, USB, audio, and more |
| LED Feature |
4x EZ Debug LED |

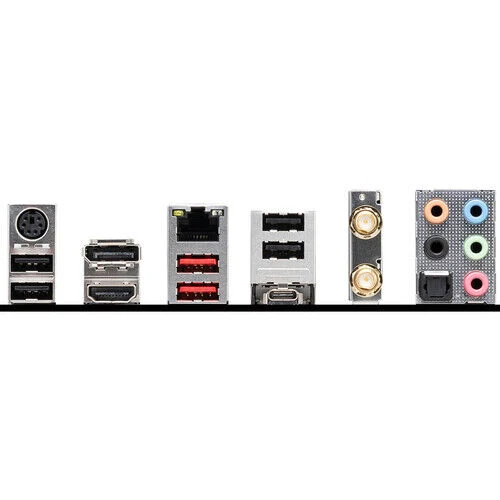

| Back Panel Ports |
A variety of ports including USB, LAN, audio connectors, HDMI™ 2.1, DisplayPort 1.4, and more |
| Operating System |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
ATX, 243.84mmx304.8mm |
|
| Brand |
MSI |
| Weight |
1.500000 |
| Chipset Brand |
Intel B760 |
| Socket |
Intel LGA 1700 |
| Form Factor |
ATX |
