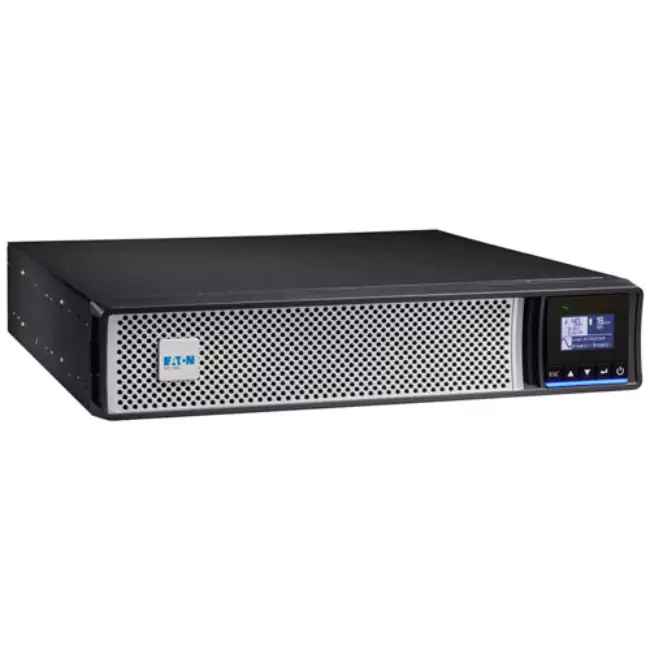

Eaton Ups 5px1500irt2ug2 1500 VA 5px Gen2

د.إ 2,855.00

Weight22.4 kg
BrandEaton
TypeRack / Tower
Watts1500 VA / 500 W
ColorBlack
10 Items sold in last 3 days

Out of stock

Unfortunately, this product is out of stock.
Contact us for more information.




    38 People watching this product now!
    SKU: 5PX1500IRT2UG2 Category:
    Description

    Description

    Specification

    Catalog Number
    5PX1500IRT2UG2

    UPC
    743172104861

    Product Length/Depth
    448 mm

    Product Height
    85.5 mm

    Product Width
    438 mm

    Product Weight
    22.4 kg

    Warranty
    3 year on electronics, 2 year on battery

    Compliances
    IEC/EN 62040-1
    IEC/EN 62040-2
    IEC/EN 62040-3
    RoHS Compliant
    REACH
    UL 1778
    CSA 22.2
    Certifications
    CE
    cTUVus
    EAC
    Cm
    UKCA
    Ukr
    KCC
    ENERGY STAR certified
    Model Code
    Eaton 5PX 1500i RT2U G2

    Battery
    Battery type
    Lead-acid maintenance-free (replaceable)
    Runtime graph
    Battery replacement
    User replaceable
    Battery quantity
    4
    Battery management
    ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
    Battery rating
    12 V / 9 Ah
    Extended battery capability
    Yes

    Electrical output
    Receptacle
    (8) C13
    Voltage
    230V
    Wattage
    1500 W
    Output power factor
    1
    Output voltage range
    230 V (+6%/-10%)
    Output waveform
    Sine wave
    Output nominal voltage
    230V default (200/208/220/230/240V)
    Voltage distortion output (linear load) – max
    0
    Feed type
    1
    Topology
    Line-interactive
    VA rating
    1500 VA
    Electrical input

    Input connection
    C14
    Input nominal voltage
    230V default (200/208/220/230/240V)
    Nominal frequency
    50-60 Hz
    Input voltage range
    160-294 V (adjustable to 150 V-294 V)
    Input frequency range
    47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

    Communications
    Includes network card
    No
    Communication
    USB port (HID compliant)
    Serial port (RS232)
    Mini-terminal block for remote On/Off and Remote Power Off
    Mini-terminal block for output relay
    Dry contacts (3 outputs, 1 input, optocoupler, DB9)

    User interface
    Multilingual graphical LCD display
    Potential free switch contact
    Yes
    Expansion slots
    One slot for optional communication card
    Software compatibility
    Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
    Type of interface
    Other

    Environmental
    Altitude
    3000 m
    Noise level
    <40 dB at 1 meter
    Temperature range
    0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)
    Relative humidity
    0-90% non-condensing

    Additional specifications
    Construction type
    482.6 mm (19 inch) device
    Package contents
    Rack-mounting kit
    (2) Supports for tower mounting
    Cable locking system
    USB cable
    Serial cable
    (2) IEC-IEC cables
    Quickstart guide
    Safety instructions
    Phase (output)
    1
    Auto shutdown function
    Yes
    Color
    Black/silver
    Efficiency
    98
    Rack mounting kit
    Yes
    Phase (input)
    1
