Description

The ASUS ROG Loki 1200W Titanium SFX-L is a high-performance power supply unit (PSU) designed for small form factor (SFF) builds and enthusiast-grade gaming systems. Here is a detailed description of its key features:

Compact Form Factor: The ROG Loki 1200W Titanium is housed in an SFX-L form factor, measuring 125 x 125 x 63.5 mm. This compact design makes it ideal for SFF builds where space is limited, yet it still packs a significant amount of power.

High Performance and Efficiency: This PSU is 80 PLUS Titanium certified, meaning it achieves up to 94% efficiency. This high efficiency translates to low heat and noise, ensuring reliable operation and increased lifespan. The use of low-ESR Japanese capacitors further enhances efficiency and reduces heat, making the ROG Loki ready to fuel demanding systems for years to come.

PCIe Gen 5.0 Ready: The ROG Loki 1200W Titanium includes a 16-pin PCIe cable that can deliver up to 600W of power to PCIe Gen 5.0 graphics cards. This feature is particularly beneficial for future-proofing, as it supports the latest power specifications and next-gen hardware. The PSU also complies with the ATX 3.1 standard, which introduces tighter voltage and current regulation guidelines for enhanced performance and stability.

Quiet Operation: The ROG Loki 1200W Titanium is known for its quiet operation, earning a Cybenetics Lambda standard ++ certification. On average, it emits less than 35 dB of noise, making it one of the quietest PSUs in its class. The 120 mm fan features 0dB technology, which means the fan shuts off entirely when the PSU is under a certain load, further reducing noise levels.

Advanced Cable Management and Connectors: The PSU comes with high-performance copper pins and upgraded PCIe connectors that ensure cooler operation and improved power delivery efficiency. The cables are made from a soft premium material, can be bent easily during installation, and operate at temperatures 50°C lower than the safety limit when bent. These cables meet the rigorous standards of the UL1581 flame test and UL758 certification, ensuring safety and ease of use during PC DIY projects.

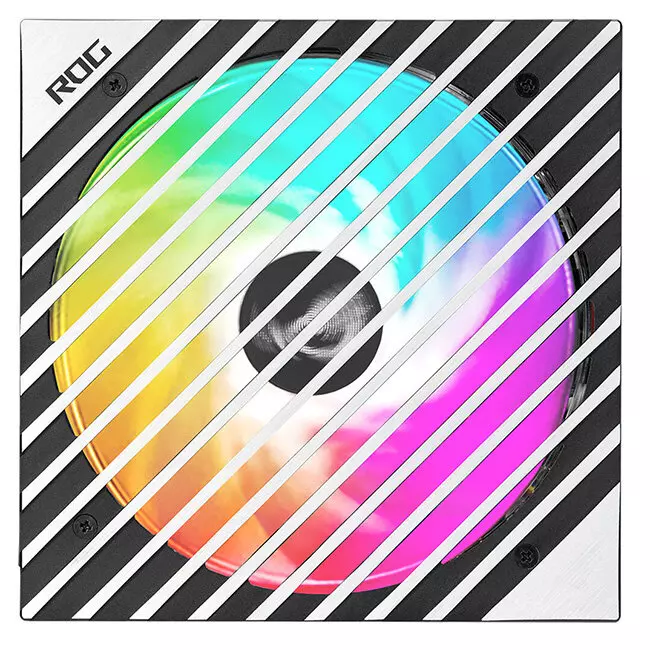

ARGB-Illuminated Fan and Aura Sync: The PSU features an ARGB-illuminated fan that can be synchronized with other Aura Sync-compatible components to create coordinated lighting patterns across your gaming setup. The fan supports various lighting effects, including static, breathing, strobing, color cycle, rainbow, and more, allowing for a highly customizable aesthetic.

Reliability and Warranty: ASUS is confident in the reliability of the ROG Loki 1200W Titanium, backing it with a 10-year warranty for core product operation. The RGB LEDs are covered by a 3-year warranty. This long warranty period reflects the high quality and durability of the PSU.

Specifications:

Form Factor	SFX-L
PFC Type	Active PFC
ATX Standard	ATX 3.0
Dimensions	125 x 125 x 63.5 mm
Efficiency	80Plus Titanium
MTBF	>120,000 hrs @ 25°C
Protection Features	OPP, OVP, UVP, SCP, OCP, OTP
Hazardous Materials	ROHS
AC Input Range	100-240Vac
DC Output Voltage	+3.3V, +5V, +12V, -12V, +5Vsb
Maximum Load	+3.3V: 20A, +5V: 20A, +12V: 100A, -12V: 0.8A, +5Vsb: 3A
Combined Load	+3.3V and +5V: 110W, +12V: 1200W, -12V: 9.6W, +5Vsb: 15W
Total Output	1200W

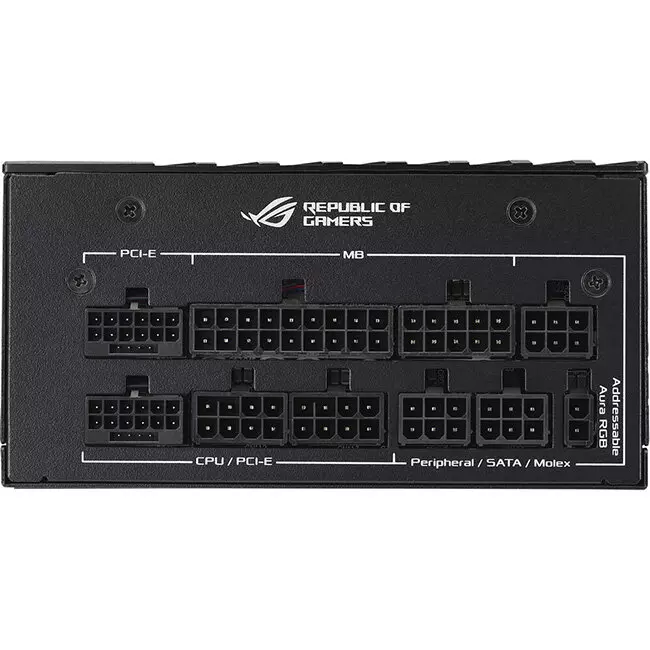

Cable Connectors	MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 2 (both PSU & component side) PCI-E 8-pin x 4 SATA x 6 PERIPHERAL x 4
Package Contents	Power Cord x 1 Motherboard Power Cable x 1 (450mm) CPU Cable x 2 (550mm) PCI-E Gen 5 16-pin Cable x 2 (450mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 2 (450mm) SATA 1-to-3 Cable x 2 (300+200+100mm) Peripheral 1-to-4 Cable x 1 (300+100+100+100mm) Addressable RGB Cable x 1 (800mm) User Manual x 1 ATX to SFX adapter bracket x 1
Weight	2.15 kg (single PSU)
AURA SYNC	ARGB
Cybernetics Noise Level Certification	S++
0dB Technology	Supported. The fan shuts off entirely when the PSU is under a certain load
