Description
The ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition is a high-performance graphics card designed for gamers and creators seeking exceptional performance and advanced cooling solutions.
Innovative Cooling System
The ROG Astral introduces ROG’s first quad-fan graphics card design, enhancing airflow and pressure by up to 20%. This design includes a patented vapor chamber with milled pathways, allowing heat pipes to sink in without flattening, which boosts heat dissipation efficiency by over 10%. Additionally, optimized fin spacing permits more densely packed heatsink fins, increasing cooling potential. A phase-change GPU thermal pad further enhances thermal performance by melting to fill gaps between the GPU die and heat spreader, ensuring optimal heat transfer.
Premium Power Delivery
Equipped with 80 Amp MOSFETs, the ROG Astral provides 35% more headroom for power delivery, supporting higher overclocking potential while maintaining stability and efficiency.
Protective Features
The graphics card includes a protective PCB coating that safeguards against moisture and debris, ensuring durability and longevity.
NVIDIA Blackwell Architecture
Built on NVIDIA’s Blackwell architecture, this GPU incorporates fifth-generation Tensor Cores optimized for AI performance with FP4 and DLSS 4, new streaming multiprocessors designed for neural shaders, and fourth-generation Ray Tracing Cores built for Mega Geometry. These advancements enable true-to-life graphics and exceptional responsiveness.
AI-Enhanced Graphics and Performance
With NVIDIA DLSS 4 featuring Multi Frame Generation, the ROG Astral RTX 5080 delivers AI-enhanced graphics, providing higher frame rates and superior image quality. NVIDIA Reflex 2 with Frame Warp ensures game-winning responsiveness, reducing latency for a more immersive gaming experience.
Design and Aesthetics
The ROG Astral RTX 5080 boasts a sleek design inspired by the cosmos, reflecting a premium build quality. Indirect Aura Lighting with ARGB allows for personalized lighting effects, enabling users to customize the card’s appearance to match their system’s aesthetics.
Software Integration
Users can utilize ASUS GPU Tweak III for comprehensive GPU tuning and MuseTree for AI-driven creative enhancements. These tools provide intuitive interfaces for performance optimization and creative exploration.
Dimensions and Compatibility
The ROG Astral RTX 5080 measures 357.6 mm in length and 149.3 mm in width, requiring a robust power supply to support its high-performance capabilities. It’s recommended to pair it with a PSU like the ROG Thor III 1600W or 1200W to ensure optimal performance.
Conclusion
The ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition stands at the forefront of graphics technology, offering a blend of innovative cooling solutions, robust power delivery, and advanced architectural features. Its design caters to enthusiasts and professionals who demand top-tier performance and reliability for gaming and creative workloads.
Specifications:
| Graphic Engine |
NVIDIA® GeForce RTX™ 5080 |
| Bus Standard |
PCI Express 5.0 |
| Video Memory |
16GB GDDR7 |
| CUDA Cores |
10,752 |
| Memory Speed |
30 Gbps |
| Memory Interface |
256-bit |
| Max Resolution |
7680 x 4320 |

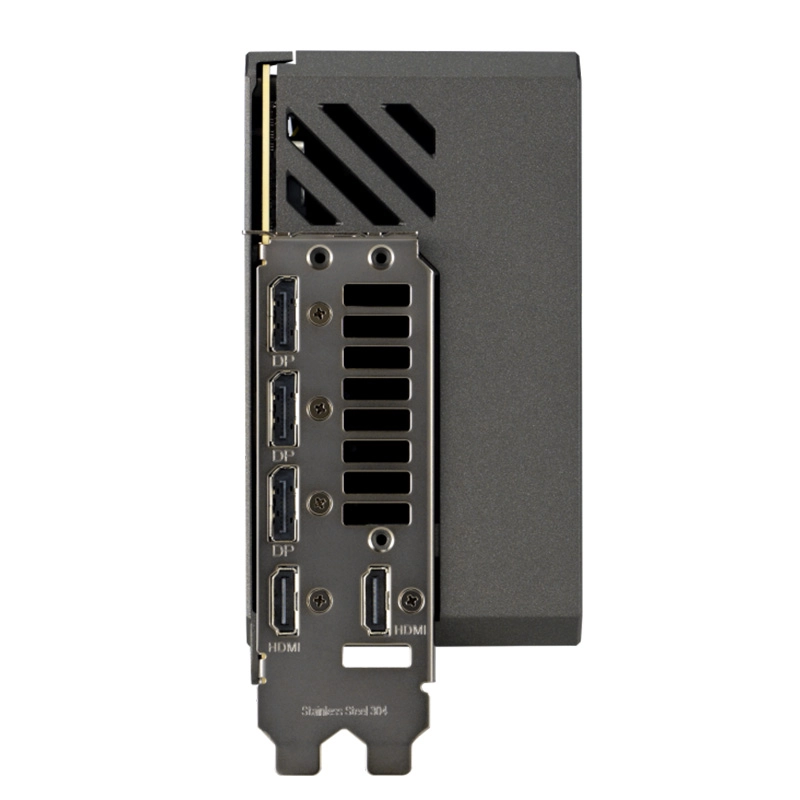

| Interface |
2 x HDMI 2.1b, 3 x DisplayPort 2.1a |
| Maximum Display Support |
4 |
| Power Connectors |
1 x 16-pin |
| Recommended PSU |
850W |
| Slot Size |
3.8 Slot |
| Dimensions |
357.6 x 149.3 x 76 mm |
| AURA SYNC |
ARGB |
