Description

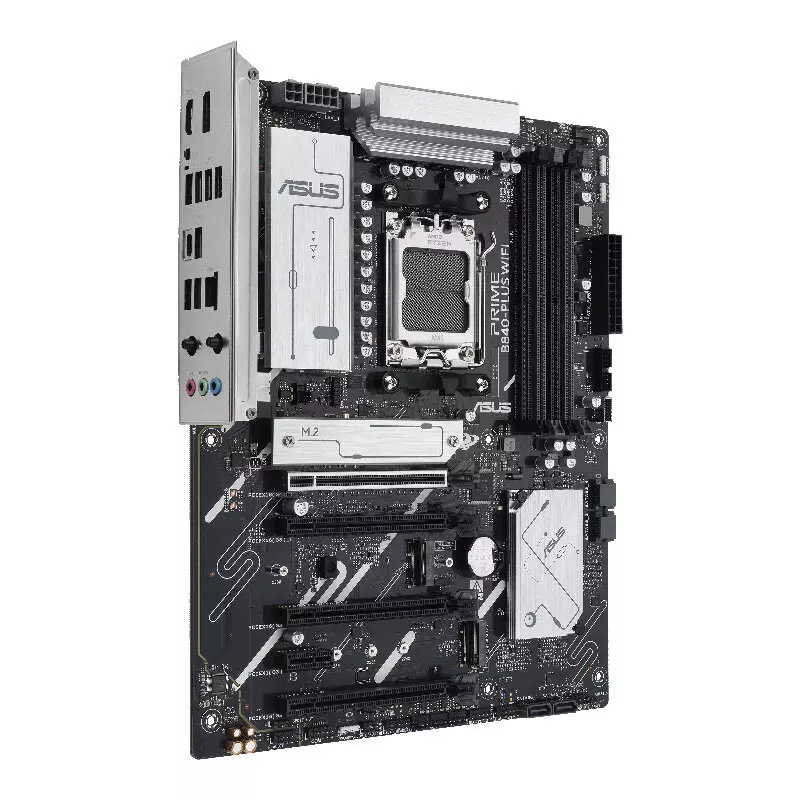

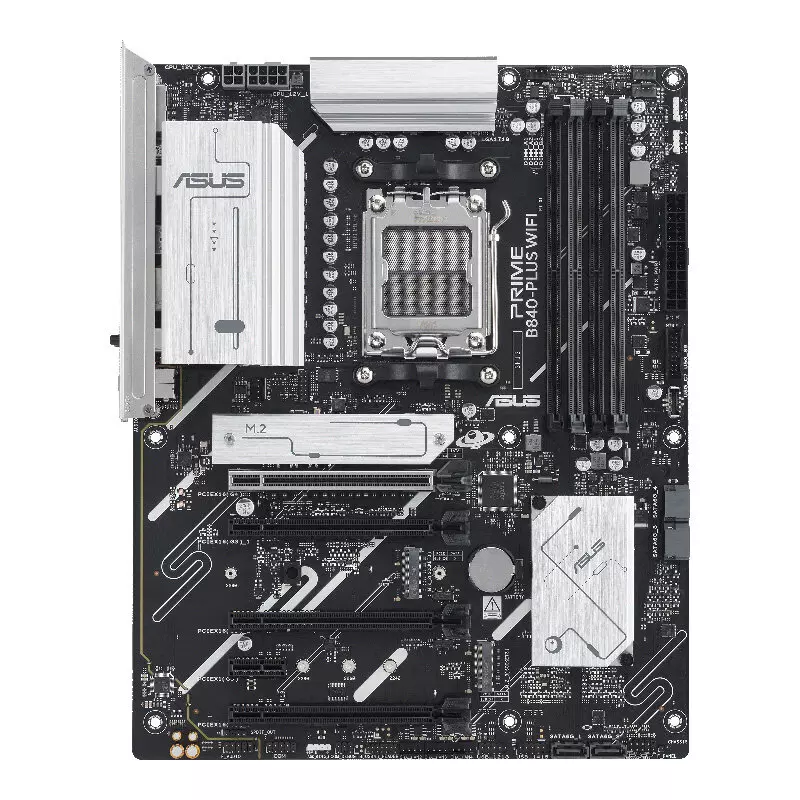

B840-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.

Digital Power Design
PRIME B840-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.

Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840-PLUS WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.

For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the PRIME B840-PLUS WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.

Three M.2 slots (up to 64 Gbps)
PRIME B840-PLUS WIFI offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.

Cooler by design
The PRIME B840-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Empowering connections
This motherboard offers a versatile range of connectivity, including support for WiFi 6E, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connections.

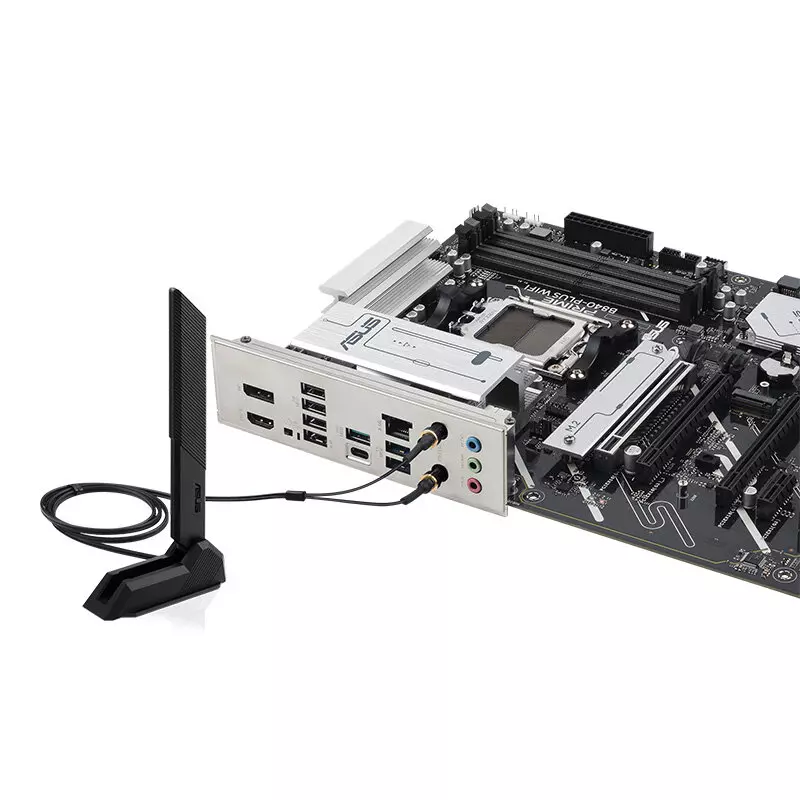

WiFi 6E
Built-in WiFi 6E4 technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.

Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

USB 10Gbps Type-C
A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C® connector with ultrafast USB 10Gbps for transmission speeds of up to 10Gbps.

Personalization
The PRIME B840-PLUS WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

Specifications:

CPU Support	AMD Socket AM5 (Ryzen™ 9000 / 8000 / 7000 Series)
Chipset	AMD B840
Memory	4x DDR5 DIMM, up to 256GB, up to 7600+ MT/s (OC), ECC/Non-ECC, Dual Channel, EXPO™ & AEMP Supported
Graphics Outputs	1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@30Hz)
Expansion Slots	1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1
Storage	3x M.2 (PCIe 4.0/3.0), 4x SATA 6Gb/s, RAID 0/1/5/10 Support
Networking	Realtek 2.5Gb Ethernet, Wi-Fi 6E (2×2), Bluetooth 5.3

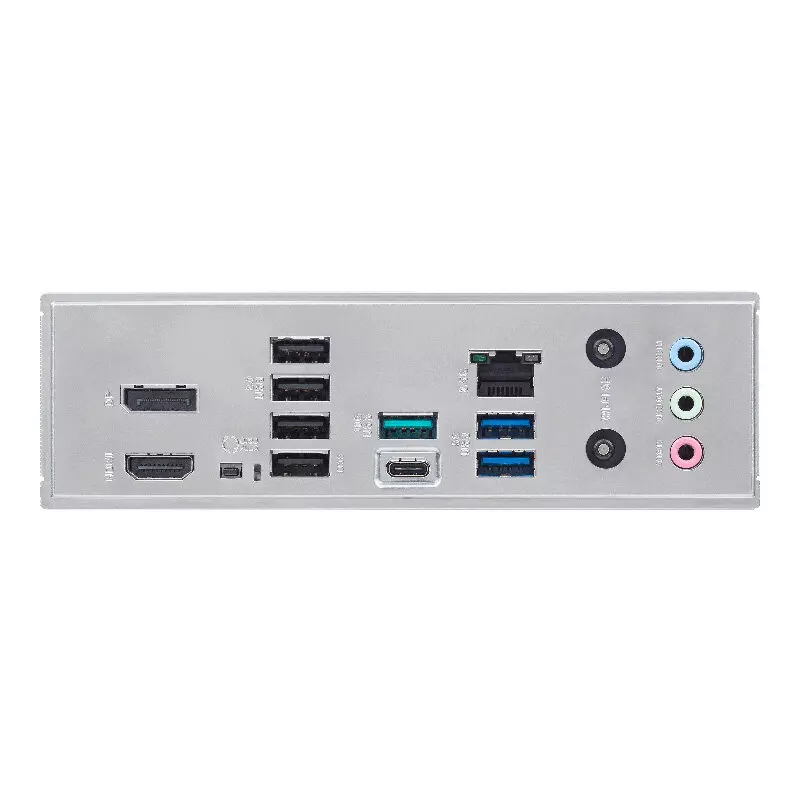

Rear USB	8 Ports (2x USB 10Gbps, 2x USB 5Gbps, 4x USB 2.0)
Front USB	7 Ports (1x USB-C 5Gbps, 2x USB 5Gbps, 4x USB 2.0)
Audio	Realtek 7.1 Surround, 24-Bit/192kHz, Audio Shielding
Form Factor	ATX (30.5 cm x 24.4 cm)
Special Features	BIOS FlashBack™, Armoury Crate, Q-LED Core, Aura Sync RGB
OS Support	Windows® 11, Windows® 10 64-bit
