Description
WAVE Fin Design & V-Shape Fin Design for GPU cooling
The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.
Die Casted Aluminum-Magnesium Alloy Frame & Frontplate Heatsink
The Die Casted Aluminum-Magnesium Alloy Frame enveloping the sides of the PCB help to strengthen the structural stiffness of the shroud to create a strong, scratch resistant and high quality finish that elevates the aesthetic and strength of the graphics card. Overlaying the entire PCB, the die casted Frontplate Heatsink cools the VRM, Memory and Chokes resulting in superior heat dissipation for top-notch airflow and cooling performance.
Digital Power Design
SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7900 Series are designed with digital power which provides accurate power control and excellent power efficiency
Ultra High-Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX 7900 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

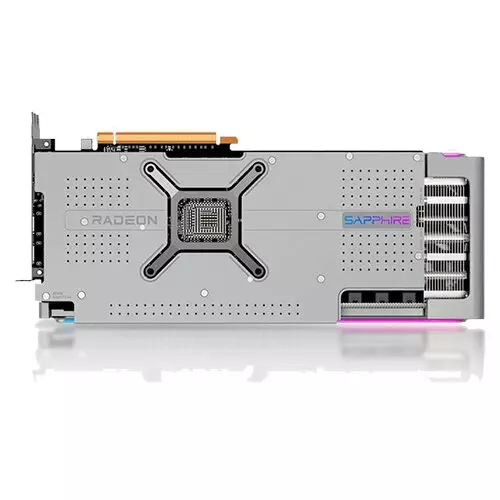

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Dedicated VRM Cooling
Dedicated VRM cooling module to create optimal heat dissipation for peak airflow and cooling performance.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Specifications
|
| SKU |
S88-5E471-120SA |
| Specifications |
| GPU |
AMD Radeon™ RX 7900 XT |
| Process Technology |
5nm |
| Architecture |
AMD RDNA™ 3 |
| Engine Clock |
Boost Clock: Up to 2560 MHz<br>Game Clock: Up to 2220 MHz |
| Stream Processors |
5376 |
| Compute Units |
84 CU (with RT+AI Accelerators) |
| Infinity Cache |
80MB |
| Ray Accelerators |
84 |
| Memory Size/Bus |
20GB / 320-bit GDDR6 |
| Memory Clock |
20 Gbps Effective |
| Displays |
Maximum 4 Displays |
| Resolution |
HDMI™: 7680×4320<br>DisplayPort 2.1: 7680×4320 |
| Interface |
PCI-Express 4.0 x16 |
| Output Ports |
2x HDMI<br>2x DisplayPort |
| BIOS Support |
Dual UEFI |
| Game Index |
4K |
| Sapphire Features |
Dual BIOS<br>TriXX Software Switch<br>Premium Digital Power Design<br>Ultra High Performance Conductive Polymer Aluminum Capacitors<br>Fuse Protection<br>Tri-X Cooling Technology<br>Vapor-X Cooling<br>High TG Copper PCB<br>Optimized Composite Heatpipe<br>Intelligent Fan Control<br>Precision Fan Control<br>Metal Backplate with ARGB<br>Dual ARGB Light Bar<br>Two-Ball Bearing Fans<br>Angular Velocity Fan Blade<br>Assistive System Fan Control<br>Die Casted Aluminum-Magnesium Alloy Frame<br>Frontplate Heatsink for VRM<br>Wave Fin Design<br>V Shape Fin Design for GPU Cooling<br>TriXX Supported<br>Fan Check<br>Fan Quick Connect<br>TriXX Boost<br>NITRO Glow<br>External RGB LED MB Synchronization |
| AMD Features |
AMD RDNA™ 3 Architecture<br>84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)<br>80MB AMD Infinity Cache™ Technology<br>DisplayPort™ 2.1 Support<br>AMD Radiance Display™ Engine<br>20GB GDDR6 on 320-Bit Memory Bus<br>PCI® Express 4.0 ready<br>AMD FidelityFX™ Super Resolution technology<br>Microsoft® DirectX® 12 Ultimate Support<br>Microsoft® DirectStorage Support<br>Vulkan® Optimized<br>AMD Smart Technologies<br>AMD Software: Adrenalin Edition™<br>AMD Noise Suppression<br>AMD Privacy View<br>AMD Radeon™ Super Resolution technology<br>AMD Link<br>AMD FreeSync™ Technology |
| Cooler Type |
3 Fans<br>Vapor-X Cooling |
| Form Factor |
3.5 slot, ATX<br>Dimension: 320(L) x 135.75(W) x 71.6(H) mm |
| Power Consumption |
368W Total Board Power |
| Operating System Support |
Linux®, Windows® 10, and Windows 11 (64-bit) |
| System Requirements |
Minimum 750 Watt Power Supply<br>3 x 8-pin Power Connector<br>PCI Express® based PC with one X16 lane graphics slot available on the motherboard<br>Minimum 8GB of system memory (16GB recommended) |
|
| Brand |
SAPPHIRE |
| Weight |
4.000000 |
| Form Factor |
ATX |
| Chipset manufacturer |
AMD |
Reviews
There are no reviews yet.
