Description

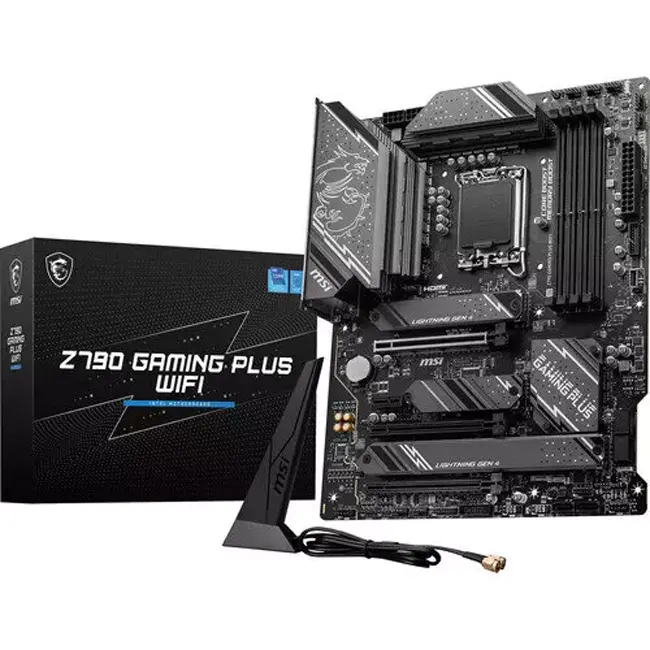

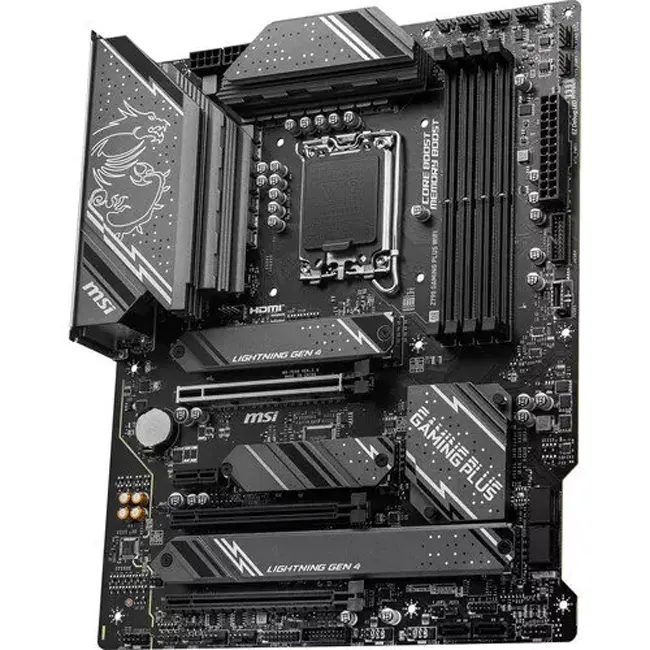

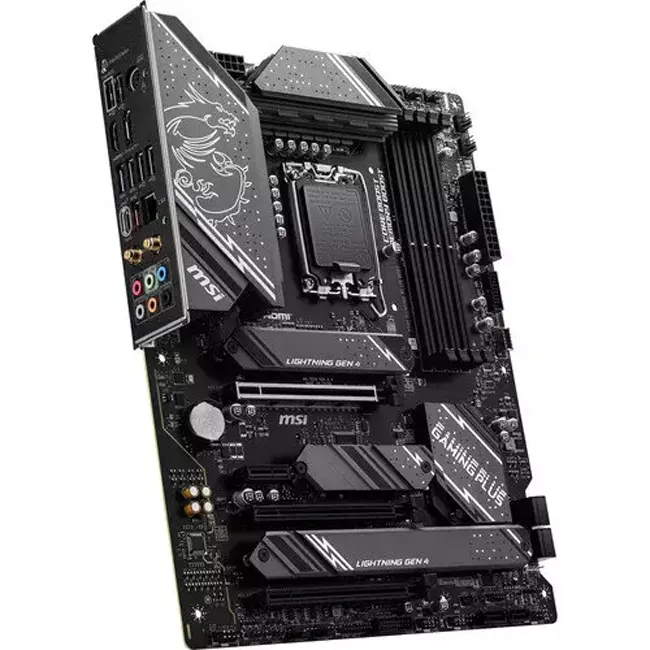

The robust MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard. Designed to leverage the power of Intel CPUs, the GAMING PLUS sports a layout designed to give gaming enthusiasts essential connectivity options ideal for starter builds.

Intel’s LGA 1700 socket rests at the heart of the GAMING PLUS, allowing you to install a variety of 12th, 13th, and 14th Gen processors to match your needs. Four DDR5 RAM slots allow you to install up to 192GB of memory to enhance multitasking and render speeds. Six SATA III and four M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with PCIe 5.0 x16, 3.0 x1, 4.0 x16 (in x4 mode), and 3.0 x16 (in x1 mode) expansion slots. Between back-panel connections and internal headers, you get several USB 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports, designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. A single back panel USB-C 3.2 Gen 2×2 port gives you enhanced throughput with greater data transfer speeds suitable for storage arrays. You also get Bluetooth 5.3 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with a built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 6E (802.11ax) options, respectively.

Enhanced Design
Providing you with enhanced performance, the GAMING PLUS utilizes several features and electrical designs to optimize your gaming experience with the 14+1+1 Dual Rail Power System. Extended heat sink, M.2 Shield Frozr, and chipset heat sink with 7W/mK thermal pad all work together to ensure your system remains cool under heavy loads.

DIY Friendly
Whether you are a seasoned or a brand-new builder, the GAMING PLUS offers several enhancements that are useful to everyone. EZ M.2 Clip makes securing your SSDs quick, easy, and screw-free. Driver Utility Installer keeps your firmware up to date, preventing potential software issues. You also have several other conveniences such as the EZ debug LEDs, Keep Out Zone, XL Clip, and a Pre-installed I/O shield.

Built for Performance
The GAMING PLUS’ PCIe 5.0 x16 slot is backed by proprietary Lightning Gen 4 technology, giving you up to 192 GB/s bandwidth, driving up graphical performance. Integrated Xtreme Memory Profile (XMP) overclocks your memory and ensures proper electrical throughput for greater RAM speeds.

Software Enhancements
Various ingrained systems allow you to fully optimize your gaming experience. MSI Center is a one-stop-shop platform for most of your needs. You can customize your settings with Profile Setting, Fan Center, System Diagnosis, Hardware Monitoring, User Scenario, and True Color settings. You also have various BIOS settings that can be adjusted with EZ-Mode or Advanced Mode along with Resizable Bar, adding even more optimization options for your system.

Reliable Design
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. The advanced Surface Mount Technology (SMT) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal

Enhanced Audio
Ensure your audio is top-notch with an array of high-definition processors, audio capacitors, and jacks designed to deliver immersive audio suitable for your games and media. Isolated audio signal splits channels to prevent crosstalk for an even clearer sound. Protect your ears as you plug and unplug your headset with De-Pop Protection.

Mystic Light
Mystic Light allows you to customize your lighting colors and effects to add personality to your system thought the A-RAINBOW V2 header. Ambient Link allows you to synchronize lighting themes with compatible lighting devices outside the case such as wall-mounted lighting panels.

Specifications

Chipset	INTEL Z790
CPU Support	Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB, Memory Support: 7200+
	Max. overclocking frequency: 1DPC 1R up to 7200+ MHz, 1DPC 2R up to 6600+ MHz, 2DPC 1R up to 6400+ MHz, 2DPC 2R up to 5600+ MHz
	Supports Intel® XMP3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory
Audio	Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage	4x M.2 slots, 6x SATA 6G
	M.2_1 (From CPU) supports PCIe 4.0 x4, 22110/2280/2260/2242 devices
	M.2_2 (From Chipset) supports PCIe 4.0 x4, 2280/2260/2242 devices
	M.2_3 (From Chipset) supports PCIe 4.0 x4/SATA mode, 2280/2260/2242 devices
	M.2_4 (From Chipset) supports PCIe 4.0 x4/SATA mode, 2280/2260/2242 devices
LAN	Intel® 2.5Gbps LAN
Onboard Graphics	1x HDMI™ 2.1 HDR (max 4K 60Hz), 1x DisplayPort 1.4 (max 4K 60Hz)
Slots	3x PCI-E x16, 1x PCI-E x1
	PCI_E1 Gen PCIe 5.0 up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 up to x4 (From Chipset)
	PCI_E4 Gen PCIe 3.0 up to x1 (From Chipset)
RAID	Supports RAID 0, 1, 5, 10 for SATA and M.2 NVMe storage devices
USB	Rear: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type A, 1x USB 20Gbps Type C
	Front: 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 10Gbps Type C
Wireless LAN & Bluetooth	Intel® Wi-Fi 6E, Bluetooth® 5.3
Internal IO	1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector (JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 1x USB4 card connector (JTBT_U4_1, supports RTD3), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C port
LED Feature	4x EZ Debug LED

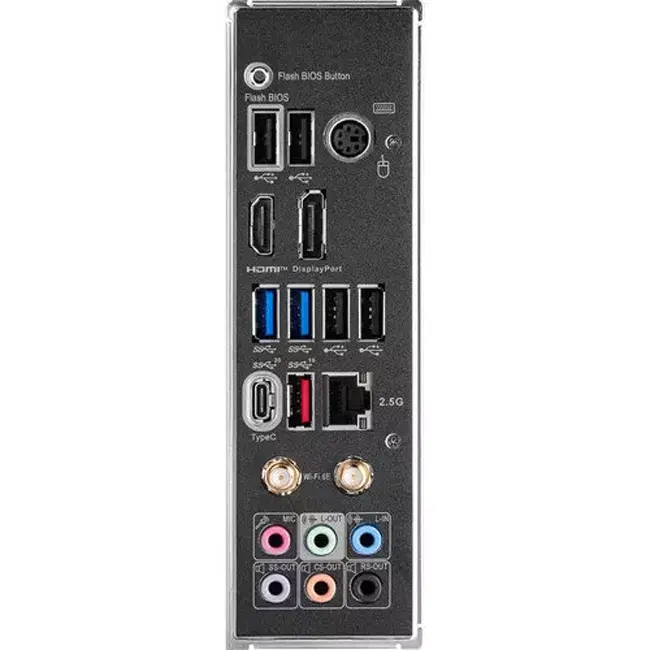

Back Panel Ports	Keyboard/Mouse, DisplayPort, USB 2.0, 2.5G LAN Port, Wi-Fi/Bluetooth Antenna, Audio Connectors, Flash BIOS Button, USB 2.0, HDMI™ 2.1 Port, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2×2 20Gbps Type-C, USB 3.2 Gen 2 10Gbps Type-A
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	ATX, 243.84mm x 304.8mm
