Description

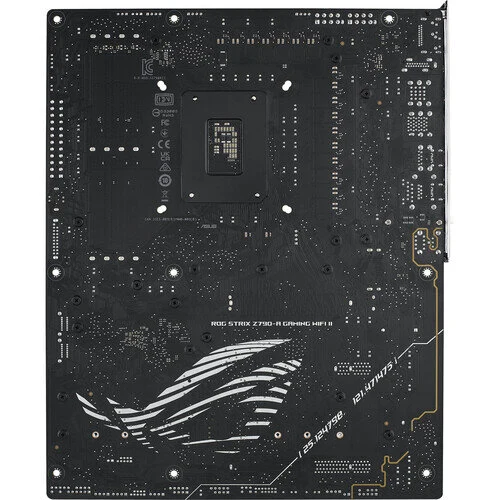

The robust ASUS ROG STRIX Z790-A GAMING WIFI II DDR5 ATX LGA 1700 Motherboard drives performance with an enhanced electrical layout, PCIe 5.0 technology, and vast connectivity options for gaming peripherals.
At the heart of the ROG STRIX Z790-A is an LGA 1700 socket and Z790 chipset, allowing you to leverage a wide range of 12th, 13th, and 14th Gen Intel processors. Four DDR5 Dual-Channel RAM slots allow you to install up to 192GB of memory with speeds up to 8000 MHz when overclocked, providing you with increased multitasking and rendering capabilities. Five M.2 PCIe and four SATA III storage interfaces allow you to combine an array of storage drives to build a massive gaming library. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while PCIe 4.0 x16 and 3.0 x1 slots support a wide range of utility cards. Between the back panel and internal headers, you get access to several USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 ports, offering plenty of support for peripherals such as mice, keyboards, and controllers as well as resource-demanding devices like external drives. Wireless devices can utilize Bluetooth 5.4 technology for a reliable cable-free experience. Connect to your wireless network with Wi-Fi 7 (802.11be) or use the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection.
Enhanced Power Solution
Equipped with 16+1+2 70A power stages with ProCool II connectors, alloy chokes, 8-layer PCB, and durable capacitors, the ROG STRIX Z790-A GAMING WIFI II delivers stable power throughout the entire motherboard, maintaining electrical volume whether you are performing simple tasks or operating at full power during resource-demanding processes.
Specifications
|
| SKU |
90MB1FN0-M0EAY0 |
| Specifications |
| CPU |
Chipset: Intel Z790
CPU Socket: LGA 1700 |
| Back Panel I/O |
USB: 1 x USB-C (USB 3.2 Gen 2×2), 2 x USB-A (USB 3.1/3.2 Gen 2), 1 x USB-C (USB 3.1/3.2 Gen 2), 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1), 4 x USB-A (USB 2.0)
Thunderbolt: No
Display: 1 x DisplayPort, 1 x HDMI
Audio: 2 x 1/8″ / 3.5 mm, 1 x S/PDIF
Ethernet / Controller: 1 x Intel 2.5Gigabit
Wi-Fi Antenna: 2 x Connector
Buttons: BIOS Flashback, Clear CMOS |
| Memory |
Memory Slots: 4 x 288-Pin
Memory Support: DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 8000 MHz
Maximum Capacity: 192 GB
Channel Architecture: Dual Channel
ECC Support: Non-ECC Unbuffered |
| Storage Expansion |
SATA: 4 x SATA III
M.2: 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2), 2 x M Key 2280 (PCIe 4.0 x4), 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support: No
RAID Support: RAID 0, 1, 5, 10 (SATA), RAID 0, 1, 5, 10 (M.2) |
| Internal I/O |
Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1
USB: 1 x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port), 1 x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port), 2 x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling: 2 x 4-Pin CPU, 5 x 4-Pin System, 1 x Thermal Sensor
Liquid Cooling: 1 x 4-Pin Pump
Power Connectors: 1 x 24-Pin Mainboard, 2 x 8-Pin CPU
Security: Chassis Intrusion
LED Header: 4 x RGB
Audio: No
Diagnostics: CPU Overclock
Add-On: 1 x Thunderbolt Header |
| BIOS |
ROM: 256 Mb |
| Front Panel I/O |
Front Panel I/O: AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio: SupremeFX ALC4080 (7.1-Channel)
DAC: No
Wireless: Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth: 5.4
Software: OS Compatibility: Windows 10 (64-Bit Only), Windows 11 |
| Physical |
Form Factor: ATX
Dimensions: 12.0 x 9.6″ / 30.5 x 24.4 cm |
| Packaging Info |
Package Weight: 4.995 lb
Box Dimensions (LxWxH): 14 x 11.3 x 2.8″ |
|
| Brand |
ASUS |
| Weight |
3.000000 |
| Chipset Brand |
Intel Z790 |
| Socket |
Intel LGA 1700 |
| Form Factor |
ATX |
