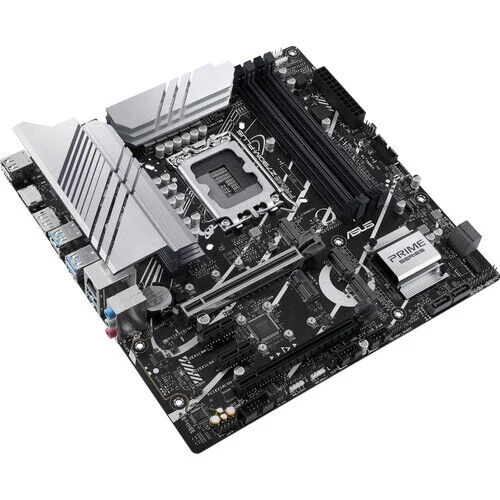

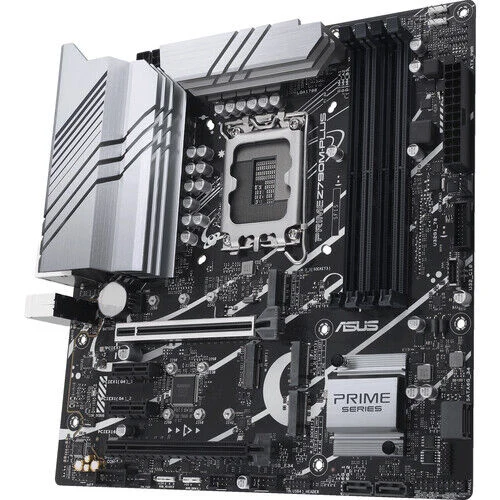

ASUS PRIME Intel Z790M-PLUS LGA 1700 DDR5 Micro-ATX Motherboard

د.إ 890.00

Weight	2.8 kg
Brand	ASUS
Form Factor Form Factor indicates the physical specifications, applications, and inherent features of a particular device.	Micro-ATX
Socket	LGA 1700
Type	DDR5
Color	White
Chipset	Intel

6 Items sold in last 3 days

Out of stock

Unfortunately, this product is out of stock.
Contact us for more information.

79 People watching this product now!

SKU: 90MB1E70-M0EAY0 Category: Motherboards

Description

Get only the essential ports and interfaces you need with the no-frills ASUS PRIME Z790M-PLUS LGA 1700 Micro-ATX Motherboard | 90MB1E70-M0EAY0. Designed as a jack-of-all-trades motherboard, the PRIME can perform a wide range of tasks with minimal flourish, making this ideal for business users and gamers looking for either an upgrade or a solid foundation for their next build.

At the heart of the PRIME is an LGA 1700 socket and Z790 chipset, allowing you to leverage a wide range of 12th and 13th Gen Intel processors. Four DDR5 Dual-Channel RAM slots allow you to equip up to 192GB of memory for enhanced multitasking capabilities and complex photo and video rendering. Four SATA III and three M.2 storage interfaces are available so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while one PCIe 4.0 x16 (in x4 mode) and two PCIe 4.0 x1 slots support a wide range of utility cards. A range of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 back panel ports and internal headers provide you with plenty of support for peripherals from low-powered equipment like mice, keyboards, and controllers to resource-demanding devices like external drives and storage arrays. Connect to your network with the integrated Gigabit Ethernet port or install an optional Wi-Fi 6 (802.11ax) module if you prefer a wireless connection.

Specifications

SKU

90MB1E70-M0EAY0

Specifications

CPU Chipset	Intel Z790
CPU Socket	LGA 1700
Back Panel I/O	USB: 1 x USB-C (USB 3.2 Gen 2×2) 1 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2 x USB-A (USB 2.0) Thunderbolt: None Display: 1 x DisplayPort 1.4 Output 1 x HDMI 2.1 Output Audio: 3 x 1/8″ / 3.5 mm Ethernet / Controller: 1 x Intel Gigabit
Memory	Memory Slots: 4 x 288-Pin Memory Support: DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz Maximum Capacity: 192 GB Channel Architecture: Dual Channel ECC Support: Non-ECC Unbuffered
Storage Expansion	SATA: 4 x SATA III M.2: 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) Optane Memory Support: No RAID Support: RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 5, 10 (SATA)
Internal I/O	Expansion Slots: 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 4.0 x1 USB: 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) 1 x Thunderbolt 4 Header (Supports 1 USB-C Port) Air Cooling: 2 x 4-Pin CPU 3 x 4-Pin System Liquid Cooling: 1 x 4-Pin Pump Power Connectors: 1 x 24-Pin Mainboard 1 x 8-Pin ATX 1 x 4-Pin ATX Security: Chassis Intrusion, TPM Header LED Header: 1 x RGB Audio: 1 x S/PDIF Diagnostics: CPU Overclock, Clear CMOS, HOTKEY
BIOS	ROM: 192 Mb
Front Panel I/O	Front Panel I/O: USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2, Thunderbolt 4 Audio Codec: Realtek (7.1-Channel) DAC: None
Wireless	Bluetooth: None Wireless: None Module Support: 1 E Key M.2
Software	OS Compatibility: Windows 10 to 11 (64-Bit Only) *As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Physical	Form Factor: Micro-ATX Dimensions: 9.6 x 9.6″ / 24.4 x 24.4 cm
Packaging Info	Package Weight: 2.795 lb Box Dimensions (LxWxH): 11.5 x 10.4 x 2.7″

Brand

ASUS

Weight

2.800000

Chipset Brand

Intel Z790

Socket

Intel LGA 1700

Form Factor

MICRO-ATX
