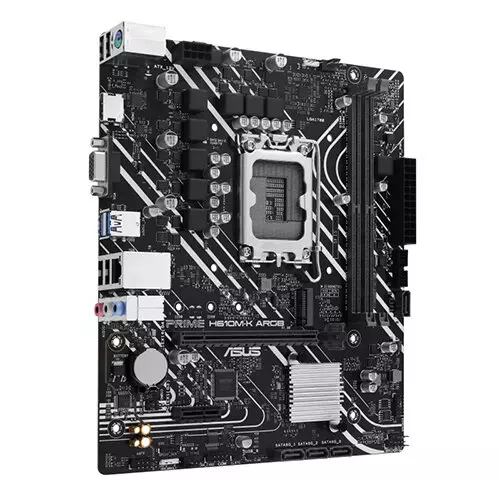

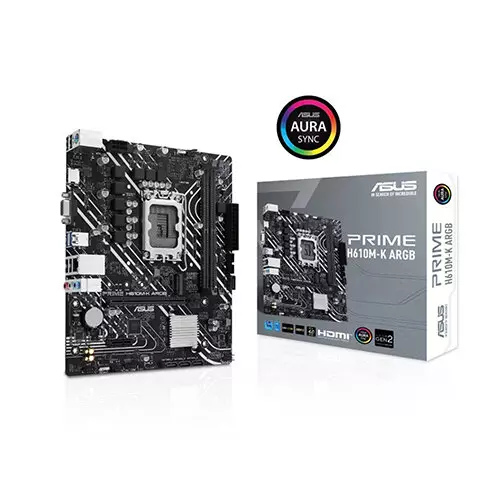

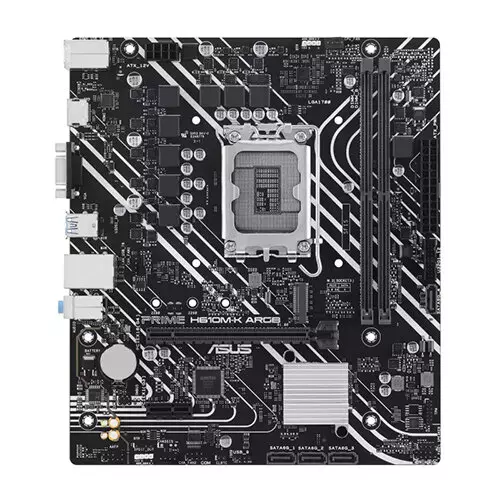

Description
PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
M.2 slot (up to 32 Gbps)
Prime H610M-K D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that’s anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
Specifications
|
| SKU |
90MB1G90-M0EAY0 |
| Specifications |
| CPU |
Intel® Socket LGA1700 for 13th/12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors |
| |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset |
Intel® H610 Chipset |
| Memory |
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory |
| |
Dual Channel Memory Architecture |
| |
Supports Intel® Extreme Memory Profile (XMP) |
| Graphics |
1 x VGA port |
| |
1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots |
Intel® 13th & 12th Gen Processors: 1 x PCIe 4.0 x16 slot |
| |
Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot |
| Storage |
1 x M.2 slot and 4 x SATA 6Gb/s ports |
| |
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Ethernet |
1 x Realtek 1Gb Ethernet |
| USB |
Rear USB (Total 6 ports): 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| |
Front USB (Total 3 ports): 1 x USB 3.2 Gen 1 (5G) header (supports 2 additional USB 3.2 Gen 1 ports), 1 x USB 2.0 header (supports 1 additional USB 2.0 port) |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
| |
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| |
Supports up to 24-Bit/192 kHz playback |
| |
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |

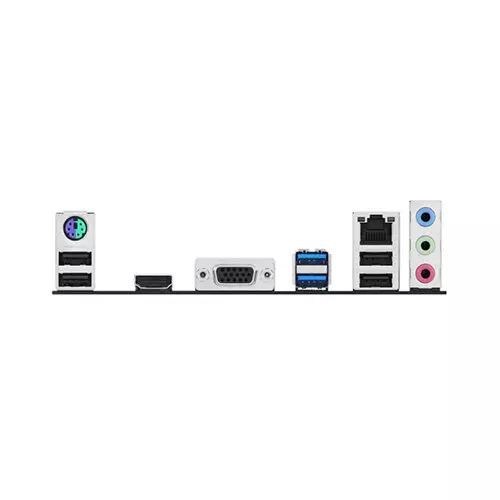

| Back Panel I/O Ports |
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x VGA port, 1 x HDMI™ port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors |
Fan and Cooling related: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers |
| |
Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| |
Storage related: 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports |
| |
USB: 1 x USB 3.2 Gen 1 (5G) header (supports 2 additional USB 3.2 Gen 1 ports), 1 x USB 2.0 header (supports 1 additional USB 2.0 port) |
| |
Miscellaneous: 2 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x COM Port header, 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header |
| Special Features |
ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ASUS Thermal Solution (Aluminum heatsink design), Aura Sync (Addressable Gen 2 RGB headers) |
| Software Features |
ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Two-Way AI Noise Cancellation), AI Suite 3 (EPU, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR |
| |
UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode) |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x I/O Shield, 1 x M.2 Anchor, Documentation: 1 x User guide |
| Operating System |
Windows® 11, Windows® 10 64-bit |
| Form Factor |
micro-ATX Form Factor, 9.2 inch x 8.0 inch (23.4 cm x 20.3 cm) |
|
| Brand |
ASUS |
| Weight |
4.000000 |
| Chipset Brand |
Intel H610 |
| Socket |
Intel LGA 1700 |
| Form Factor |
MICRO-ATX |
